E-Series 6 mm LED Display by Superior LED Displays & Custom Signs
The Superior LED Displays & Custom Signs E-Series 6 mm LED display offers exceptional brightness of 10,000 nits, a 6 mm pixel pitch, and an IP66 rating, making it a durable and versatile choice for any environment. Ideal for businesses, churches, and public spaces, this LED panel combines stunning performance with easy installation and maintenance.
Why Choose the E-Series 6 mm LED Display?
The E-Series 6 mm LED display delivers superior visibility and reliability, perfect for outdoor signage applications. With its high brightness and weather-resistant design, it’s an excellent solution for dealerships, worship centers, or retail settings. Superior LED Displays & Custom Signs ensures your signage stands out with cutting-edge technology and quality craftsmanship.
Product Details
The E-Series 6 mm LED display is engineered for outstanding performance in demanding conditions:
- Impressive Brightness: Offers 10,000 nits for clear visibility in all lighting conditions.
- IP66 Ingress Protection: Built to endure harsh outdoor environments, ensuring long-term reliability.
- Modular Mounting Frames: Enables quick assembly and efficient servicing with front and back access options.
- Versatile Use: Perfect for converting traditional signs into digital displays.
Product Introduction
Explore the standout features of the E-Series 6 mm LED display:
- Dimensions: 1 ft x 2 ft (12” x 24”), ideal for versatile installations.
- Retrofitting Capability: Seamlessly upgrades conventional backlit signs to digital displays.
- Durable Housing: Crafted from die-cast aluminum for excellent heat dissipation.
- Operating Temperature: Functions efficiently from -40°C to 60°C (-40°F to 140°F).
- Fanless Design: Fully sealed electronics enhance durability and reliability.
- Ingress Protection: IP66 rating provides robust protection against dust and water.
- Mounting Options: Choose from die-cast or extruded aluminum frames for customization.
- Quick Assembly: Assemble a 4×8 ft sign in just 30 minutes for maximum convenience.
- Installation Options: Supports both front and back service methods.
- Orientation Flexibility: Install in portrait or landscape orientations.
- Energy Efficiency: Common cathode LED screens save up to 30% energy compared to common anode screens.
- Brightness: Maximum brightness of 10,000 cd/m² for exceptional visibility.
Product Specifications
| MODEL NUMBER | E-PH6-CDS (Common cathode LEDs ) |
| Working Environment | Outdoor Use |
| Ingress protection rating | IP66 |
| Installation type | Permanent Installation |
| Pixel pitch | 6 mm |
| LED Panel size | 1’*2′ (12″x24″) |
| LED panel material | Die-casting Aluminum |
| LED Lamp | SMD2727 3in1 Common cathode LEDs |
| Density of pixel | 24,800pixel/㎡ |
| Resolution/panel | 48pixel*96 pixels |
| Average power/panel | 40W |
| Max power/panel | 133W |
| Driving Method | 1/4 Scan |
| Brightness | ≥10,000cds/㎡ |
| weight (kgs /lbs) | 6.5kgs =14.3Lbs |
| Service ways | Front service /Back service |
| Refresh rate | ≥3000HZ |
| viewing angle/horizontal | 110° |
| Viewing angle/Vertical | 90° |
| Grey scale/display color | 65536/display 16.7M |
| frame frequency | ≥60HZ |
| Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable |
| Input signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITONS |
| Control system | Colorlight and Novastar |
| System Operation Platform | Windows |
| Malfunction do rate | ＜0.0001 |
| Power supplies | DUAL VOLTAGE POWER SUPPLIES |
| AC Input Voltage（V） Frequency（Hz） | 90~240 VAC 50/60 hz |
| working / Storage temperature | working -30℃～60℃ storage -40℃～85℃ |
| Operating Humidity and Storage Humidity（RH） | 10﹪~95﹪ |
| Certifications | ETL ,CE ,EMC-A, FCC |
Benefits of the E-Series 6 mm LED Display
- Exceptional Visibility: High brightness and a 6 mm pixel pitch ensure your content shines, ideal for outdoor or large indoor spaces.
- Rugged Durability: IP66 rating and aluminum housing protect against weather and wear.
- Easy Setup: Modular frames and quick assembly save time and effort.
- Flexible Maintenance: Front and back service options simplify upkeep.
- Energy Savings: Common cathode design reduces energy costs by up to 30%.
Perfect for Businesses and Churches
The E-Series 6 mm LED display is versatile for various applications:

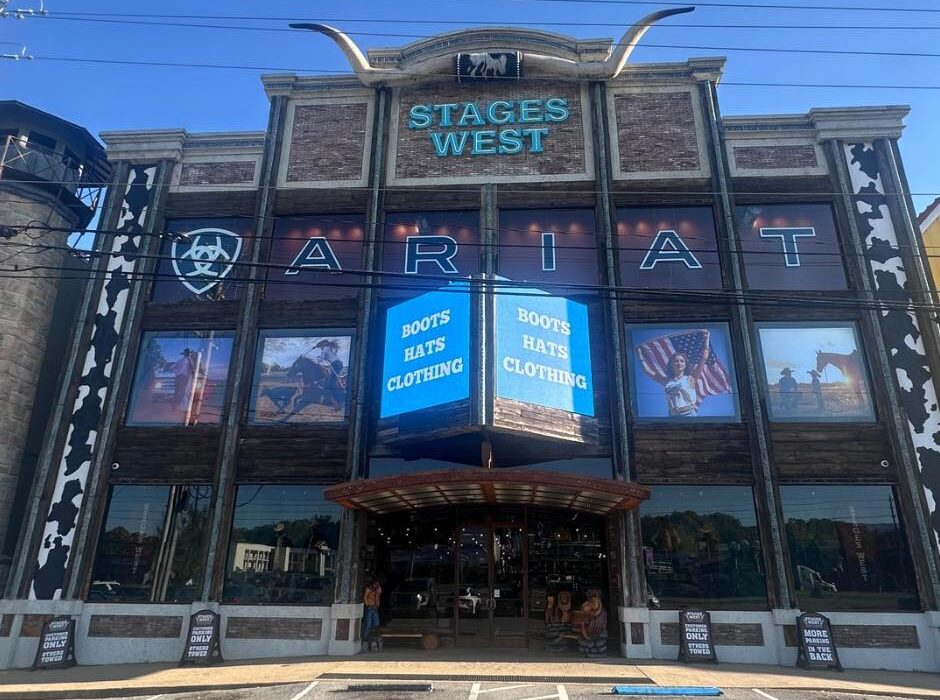

- Businesses: Ideal for outdoor advertising at car washes, shopping centers, or dealerships.

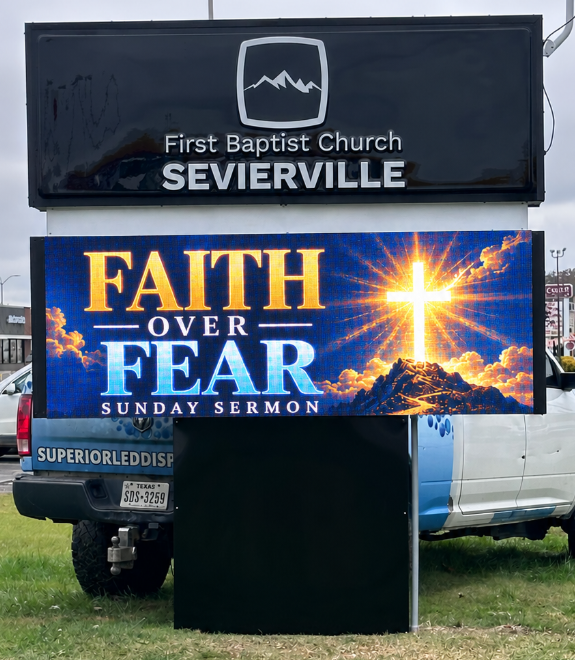

- Churches: Use as an Outdoor LED Display Sign for announcements.
- Public Spaces: Deploy for digital signage at events or community centers.
How It Works
Getting your E-Series 6 mm LED display is straightforward with Superior LED Displays & Custom Signs:
- Consultation: We evaluate your needs and recommend the best configuration.
- Design: Our team crafts a custom design for your space.
- Manufacturing: We build your display with durable, high-quality materials.
- Installation: Our experts install your sign securely on-site.
- Support: We offer ongoing service to ensure optimal performance.
Ready to upgrade with a 6 mm LED display? Let’s begin!
Elevate Your Space with the E-Series 6 mm LED Display Today
Don’t settle for ordinary signage. With the Superior LED Displays & Custom Signs E-Series 6 mm LED display, you’ll captivate your audience with brilliant visuals and robust performance. Whether for outdoor advertising or indoor worship, we’re here to help.
