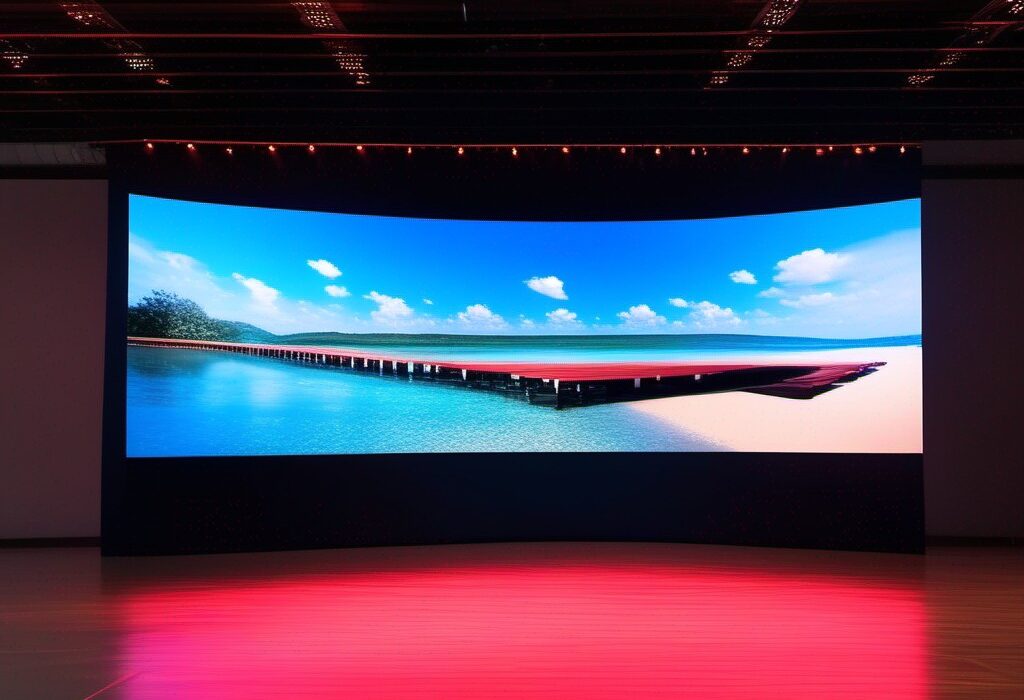

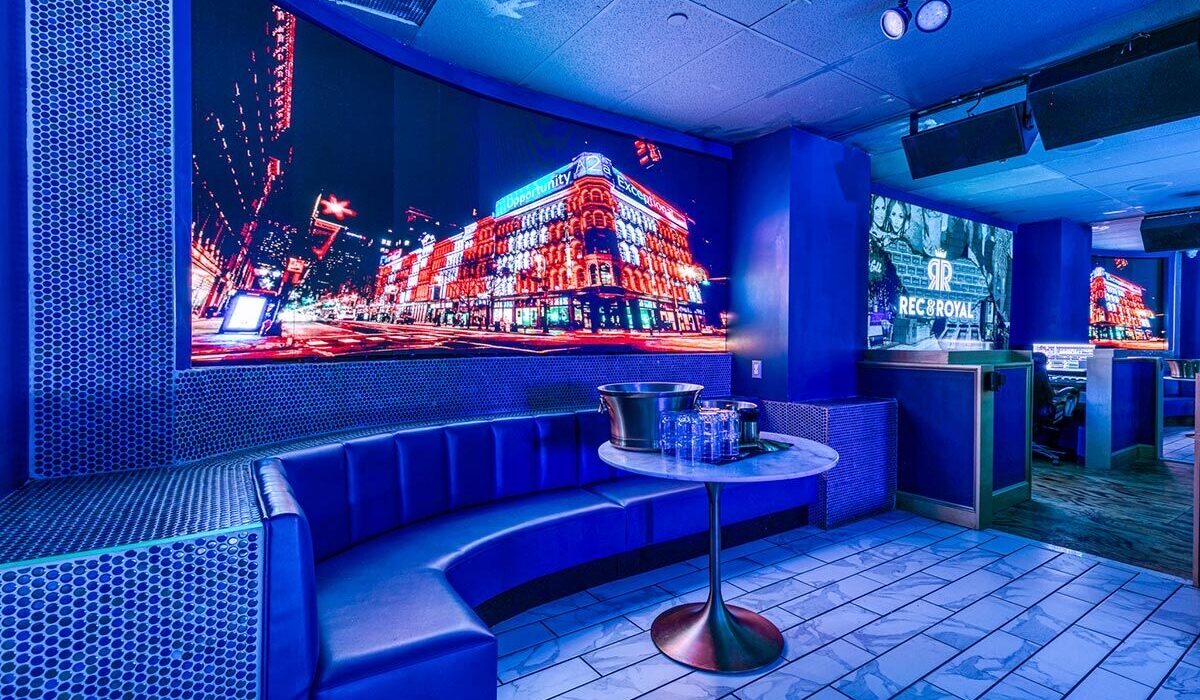

Fine pitch 1.8mm LED screen
Product introduction
- 337x600mm aluminum LED cabinet, the golden aspect ratio 16:9.suitable for making 2K 4K 8K displaying effect without compression.
- 160° super wide viewing angle indoor LED screen high gray level make the display images more vivid.
- A high refresh LED screen with a frequency of more than ≥3,500hz makes the display no flickers when taking photos.
- Support front access installation of the led modules, save installation time and maintenance time.
- Aluminum cabinet processed by high precision CNC machine, truly seamless splicing and high flatness.
- Dual backup power supplies and receiving cards ensure no disruption during the working hours of the video screen.
- All cables and connectors are hidden inside of the cabinet, with no cable external to the screen.
We provide five years warranty on this product.
Product parameter (specification)
Model Number | X-PH1.8 |
Working Environment | Indoor |
Installation Type | Fixed installation |
Installation Access | Front Access |
Pixel Pitch | 1.87 mm |
Cabinet Dimensions (HxWxD)/(mm) | 337×600 x32mm |
Module size (HxW)/(mm) | 168.75mm×300mm |
Cabinet material | Aluminum |
LED lamp | Mini LED or SMD1515 |
Pixel matrix per cabinet | 180×320 pixels |
Brightness (cd/㎡) | 800 to 1200 |
Driving Type | 1/30 SCAN |
MAX power consumption(W/㎡) | 600W |
Average power consumption(W/㎡) | 100 to 300W |
Cabinet weight (kgs) | 4.5kgs |
Control system Brand | Novastar & Colorlight |
Color Grayscale (Bit) | 16 |
Gray Scale per Color (level) | 65536 |
Refresh Rate(Hz) | ≥3000Hz |
Calibration | Brightness calibration and chromatic calibration |
Optimal Horizontal Viewing Angle(°) | 160 |
Optimal Vertical Viewing Angle(°) | 140 |
Power supplies | 4.2V60A |
AC Input Voltage(V) Frequency(Hz) | 90~240 VAC 50/60 Hz |
Operating Humidity and Storage Humidity(RH) | 10﹪~95﹪ |
Certifications | CE, FCC |
Warranty | 5 years |
Product feature and application
337*600mm LED cabinet, made of aluminum, High provision, and seamless splicing. 337×600
Light-weight cabinet only 4.5KGS,22.5kgs per square meter.
All cables and connectors are hidden inside of the cabinet, with no cable external to the screen.
Thickness is only 32mm or 1.26 inches, the best in the indoor fine pitch-led display industry.
High brightness 1000cd/m2, high refresh rate 3000HZ, and wide viewing angles 160 degrees.
One uniform size cabinet has several pixel pitches for clients’ choices.0.9mm, 1.25mm, 1.56mm, and 1.87mm.
Can customized cabinet size 337*300mm, meet more requirements to videowall sizes.
Cabinet can be installed in both portrait way and landscape way.
The screen can be installed directly onto the wall with bolts or using a wall-mount-bracket
All modules and other components support fully front service
Dual backup of data and powers (options).
