H-Series 7 mm LED Display by Superior LED Displays & Custom Signs
The Superior LED Displays & Custom Signs H-Series 7 mm LED display offers exceptional brightness and durability for your signage needs. With a 7 mm pixel pitch and a slim 12×24-inch (304.8×609.6 mm) panel, this display delivers stunning visuals for shops, schools, churches, buses, trams, taxi roofs, outdoor advertising, and sports broadcasts. Discover why the H-Series 7 mm is a top choice for outdoor digital signage.
Why Choose the H-Series 7 mm LED Display?
The H-Series 7 mm LED display is designed for maximum impact in outdoor environments. Its high brightness of 10,000 cd/m² ensures visibility even in direct sunlight, while its lightweight 14.3 lbs (6.5 kg) panel and IP66 rating make it a reliable choice for any weather condition. Superior LED Displays & Custom Signs brings innovation to your outdoor signage with this versatile, energy-efficient solution.
Product Details
The H-Series 7 mm LED display is engineered for superior outdoor performance:
- Pixel Pitch: 7 mm for crisp, high-definition visuals.
- Panel Size: 12×24 inches (304.8×609.6 mm), weighing 14.3 lbs (6.5 kg) per panel.
- Brightness: 10,000 cd/m² for excellent visibility in all lighting conditions.
- IP66 Rating: Fully sealed, fanless design for weather resistance.
- Energy Efficiency: Common cathode LEDs and dual voltage power supplies save 30-40% more energy than competitors.
Product Introduction
Discover the standout features of the H-Series 7 mm LED display:
- Pixel Pitch: 7 mm for vibrant, high-definition visuals.
- Panel Size and Weight: 12×24-inch (304.8×609.6 mm) die-casting aluminum panel, weighing 14.3 lbs (6.5 kg).
- Patented Design: Includes global patents for innovative technology.
- Applications: Ideal for DOOH (Digital Out-of-Home) digital signage, shops, schools, churches, and outdoor advertising.
- Cooling Efficiency: Aluminum materials ensure excellent heat dissipation, operating from -40°F to 140°F (-40°C to 60°C).
- Mounting Options: Choose between extruded aluminum or die-casting mounting frames.
- Installation Flexibility: Supports front and back access, vertical and horizontal orientations.
- Certifications: FCC approved.
- Fanless Design: Fully sealed electronics with an IP66 rating for durability.
- Energy Savings: Common cathode LEDs and dual voltage power supplies reduce energy use by 30-40%.
Product Specifications
| MODEL NUMBER | H-PH7-CDS (Common cathode LEDs ) |
| Working Environment | Outdoor Use |
| Ingress protection rating | IP66 |
| Installation type | Permanent Installation |
| Pixel pitch | 7 mm |
| LED Panel size | 1’*2′ (12″x24″) |
| LED panel material | Die-casting Aluminum |
| LED Lamp | SMD2727 3in1 Common cathode LEDs |
| Density of pixel | 17,161pixel/㎡ |
| Resolution/panel | 40pixel*80 pixels |
| Average power/panel | 40W |
| Max power/panel | 132W |
| Driving Method | 1/4 Scan |
| Brightness | ≥10,000cds/㎡ |
| weight (kgs /lbs) | 6.5kgs =14.3Lbs |
| Service ways | Front service /Back service |
| Refresh rate | ≥3000HZ |
| viewing angle/horizontal | 110° |
| Viewing angle/Vertical | 90° |
| Grey scale/display color | 65536/display 16.7M |
| frame frequency | ≥60HZ |
| Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable |
| Input signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITONS |
| Control system | Colorlight and Novastar |
| System Operation Platform | Windows |
| Malfunction do rate | ＜0.0001 |
| Power supplies | DUAL VOLTAGE POWER SUPPLIES |
| AC Input Voltage（V） Frequency（Hz） | 90~240 VAC 50/60 hz |
| Earth leakage current | ＜0.01mA |
| working / Storage temperature | working -30℃～60℃ storage -40℃～85℃ |
| Operating Humidity and Storage Humidity（RH） | 10﹪~95﹪ |
| Certifications | FCC |
Benefits of the H-Series 7 mm LED Display
- Stunning Visuals: 7.62 mm pixel pitch delivers high-definition outdoor displays.
- High Visibility: 10,000 cd/m² brightness ensures clarity in direct sunlight.
- Durability: IP66 rating and fanless design for all-weather performance.
- Energy Efficiency: Saves 30-40% more energy with common cathode LEDs.
- Versatility: Multiple mounting options and pixel pitches for various applications.
Perfect for Outdoor Environments
The H-Series 7 mm LED display is ideal for various settings:
- Shops and Retail: Attract customers with vibrant advertising.

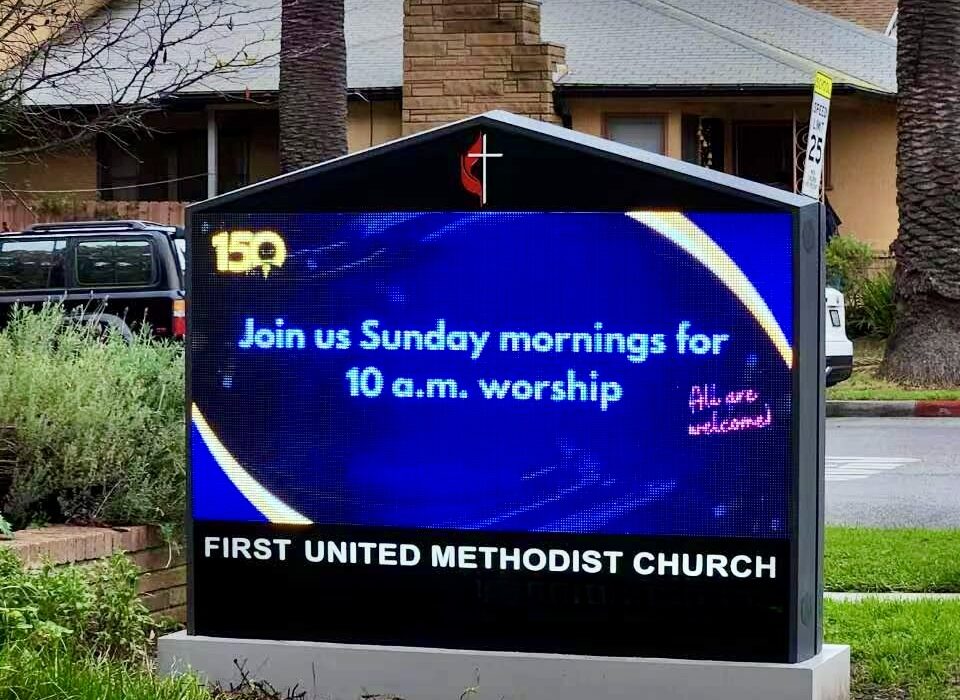

- Schools and Churches: Share announcements and events with the community.
- Outdoor Advertising: High brightness for billboards and DOOH signage.
- Sports Broadcasts: Display scores and updates with clarity.
How It Works
Getting your H-Series 7 mm LED display is simple with Superior LED Displays & Custom Signs:
- Consultation: We assess your needs and suggest the best setup.
- Design: Our team creates a custom design for your space.
- Manufacturing: We build your display with precision.
- Installation: Our experts install your sign on-site.
- Support: We provide ongoing service for optimal performance.
Ready to upgrade with a 7 mm LED display? Let’s get started!
Transform Your Outdoor Space with the H-Series 7 mm LED Display Today
Elevate your outdoor signage with the Superior LED Displays & Custom Signs H-Series 7 mm LED display. With high brightness, durability, and energy efficiency, it’s perfect for shops, schools, churches, and more.
